How to do spark plugs Z11 Gen 2

edited April 2015 in Cube Owners Club

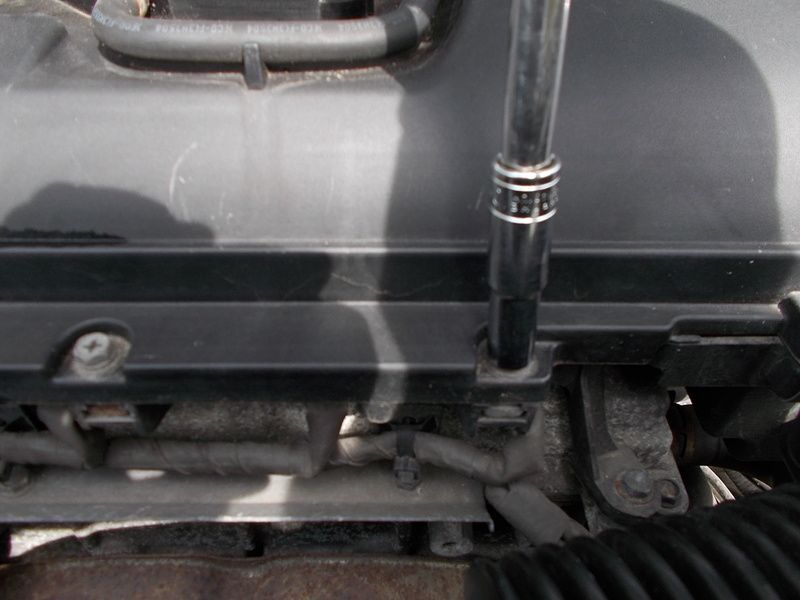

<font face="Arial, Verdana"><span style="font-size: 10pt;">I searched all over and found very little info, Inc it takes 4hrs to do lol!! took me 25 mins and easy to do, just a few bolts and electric plugs to disconnect.</span></font><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">This is my first ever "How too" so forgive any errors in posting<br></span></font><div style="font-family: Arial, Verdana; font-size: 10pt; font-style: normal; font-variant: normal; font-weight: normal; line-height: normal;"><br></div><div style="font-family: Arial, Verdana; font-size: 10pt; font-style: normal; font-variant: normal; font-weight: normal; line-height: normal;">1. What you start with.</div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0920_zpsj80otoiw.jpg</span></font></div></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">2 unbolt the bolts around edge of cover, think they are 10mm, a couple at the rear are tucked away but easy to get to.</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0921_zpsbweqxnh1.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0922_zpssxlahfaa.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">3. Unplug the electrical connections</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0923_zpsxyw9ky2y.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">4. Once unplugged lift off the top cover complete with air filter, no need to remove this first, just off as one unit.</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0924_zpsfxztjpwd.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">5. Photo of what under the cover, i.e the throttle body, put this aside safe and away from dust dirt etc</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0925_zpsnm29jyh8.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">6. Now you just need to remove the plastic still hiding the coil packs</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0926_zpsh1e7mixs.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0927_zpsxronfnrq.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">7. And here we are starting to look normal now.</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0928_zpsatyrcppv.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">8. Now simply unplug and remove coil pack, to be safe I'd say do one at a time, be careful when unplugging as the plastic can be brittle due to heat.</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0929_zps8jsduhqk.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">9. removed coil pack, plugs are deep down there. but easy removed with slim plug socket and extention.</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0930_zpsduc9zisd.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0931_zps64e770vz.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">10. Plugs out, see the difference, a much bigger gap, lets hope this improves my mile per gallon.</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">DSCN0933_zpstc8bl3uv.jpg</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">11. Putting together is a simple reversal of job, no manifold gasket required as its a durable rubber unit.</span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;"><br></span></font></div><div><font face="Arial, Verdana"><span style="font-size: 13.3333330154419px;">Hope this helps somebody some time, it really is a easy job whe nyou see whats what.</span></font></div>
